LANGREAT ELECTRONICS CO.,LTD.(CIXI)
|
CAT.6 FTP CABLE 23AWG
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

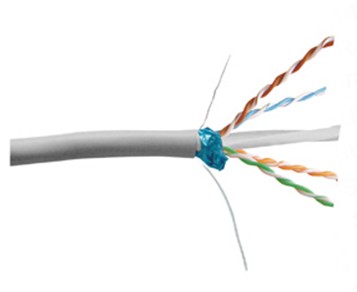

CAT.6 FTP CABLE 23AWG
ELECTRICAL CHARACTERISTICS
1. Return resisitance: 14.9/100m
2. Impedance: 100±5
3. Static electric capacity: 46pF/m 1KHz
4. Unbalance capacity: 100pF/100m
5. Roted communicate rate: 65%
1. Return resisitance: 14.9/100m
2. Impedance: 100±5
3. Static electric capacity: 46pF/m 1KHz
4. Unbalance capacity: 100pF/100m
5. Roted communicate rate: 65%
PHYSICAL CHARACTERISTICS
1. Copper diameter: 23AWG
2. Outer diameter: 6.8mm
3. Shielding material: AL foil
4. Weight: 13.9 kg/kft
5. Minimum bend radius: 60mm
6. Maximum pulling tension: 10kg
7. Jacket material: PVC/LSZH
8. Roted temperature: -20~60℃
9. Packing: Axles
1. Copper diameter: 23AWG
2. Outer diameter: 6.8mm
3. Shielding material: AL foil
4. Weight: 13.9 kg/kft
5. Minimum bend radius: 60mm
6. Maximum pulling tension: 10kg
7. Jacket material: PVC/LSZH
8. Roted temperature: -20~60℃
9. Packing: Axles
APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring; ATM155/ATM622, etc.
1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring; ATM155/ATM622, etc.
STANDARD
1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1
1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1
